You may not know his name but you've certainly seen his designs. One of the in house designers at FireWire, he's designed the FRK, No Brainer, Sweet Potato, Baked Potato, Dominator, Chumlee, and a number of others including boards for Kelly Slater, Michel Bourez, and Kai Lenny as well as NVS team rider Evan Luth.

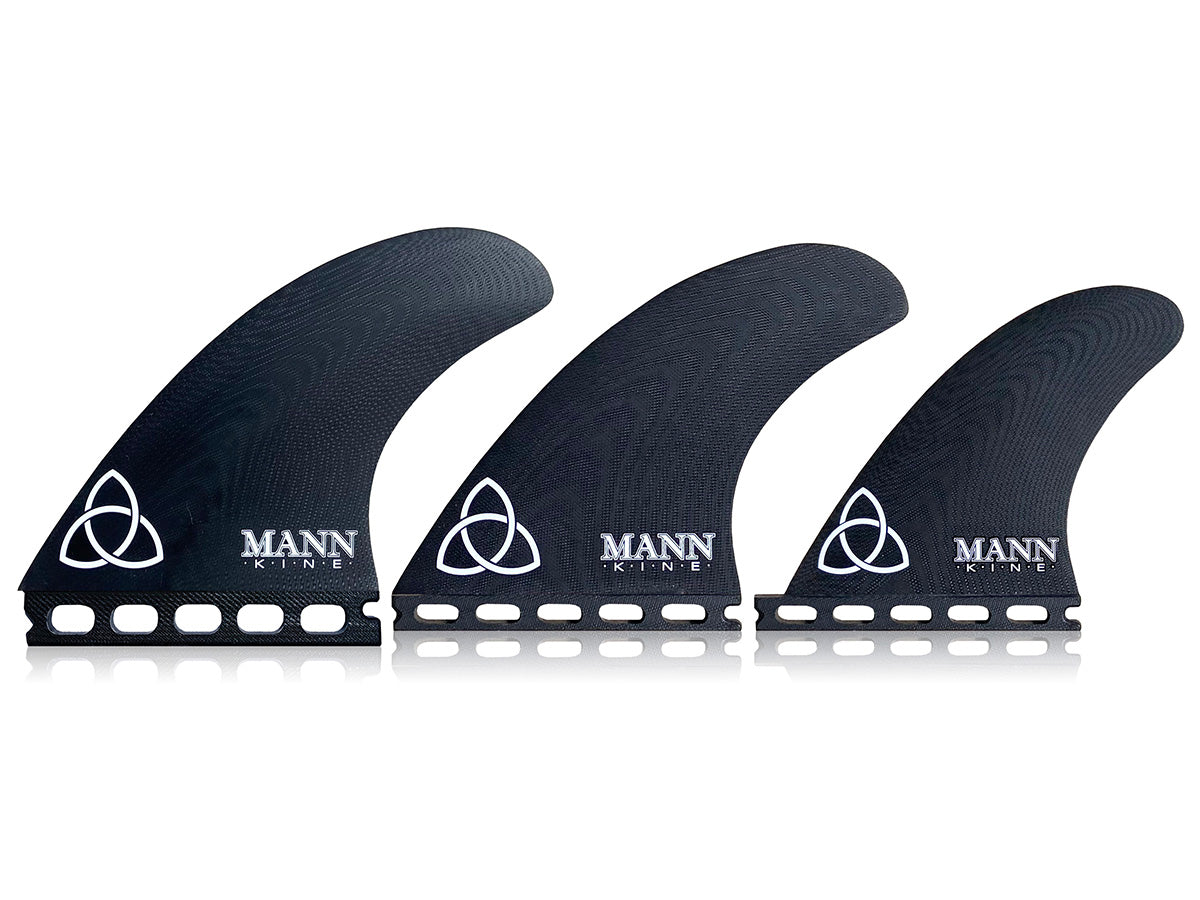

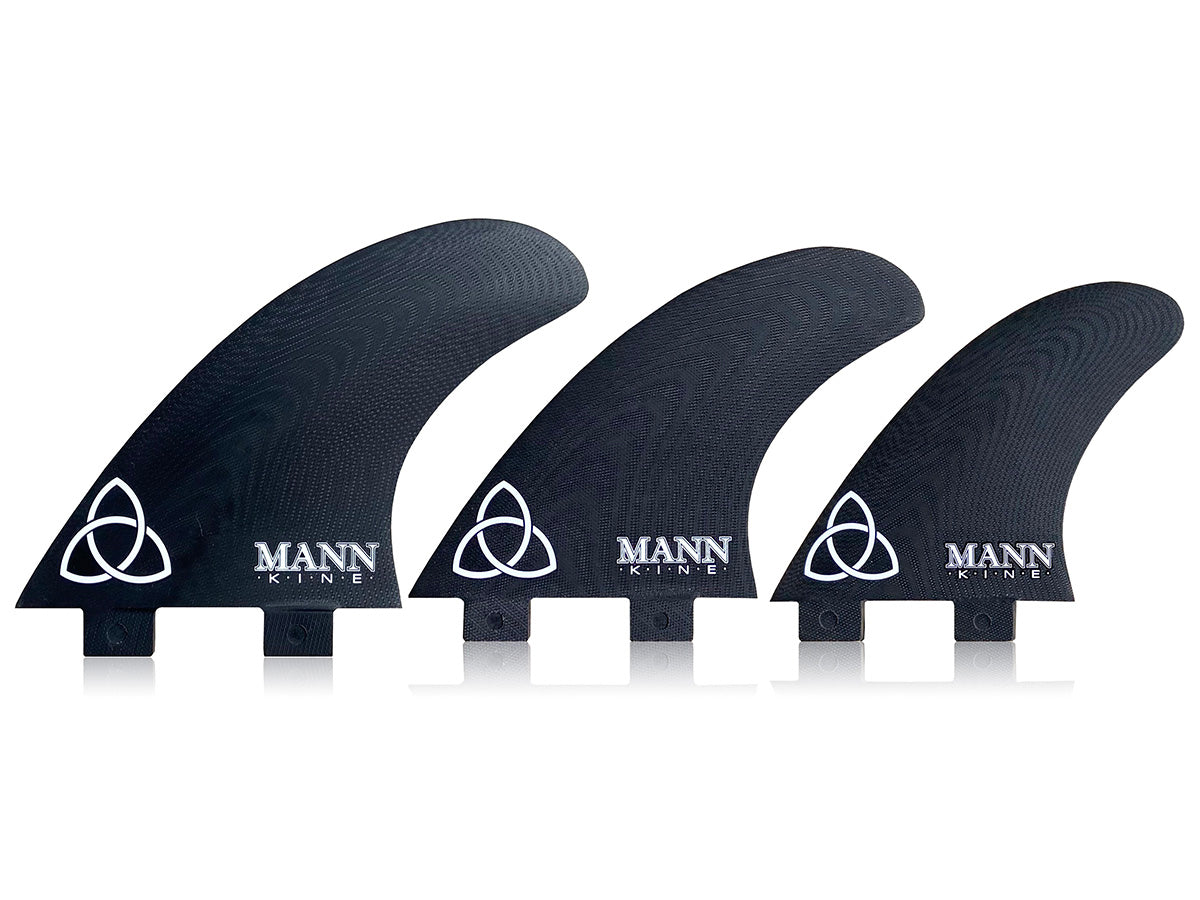

The Dan Mann designed Mannkine fins are part of our Apex Series lineup. Dan designed these to complement his board designs, whether they are shaped by him or produced by FireWire.

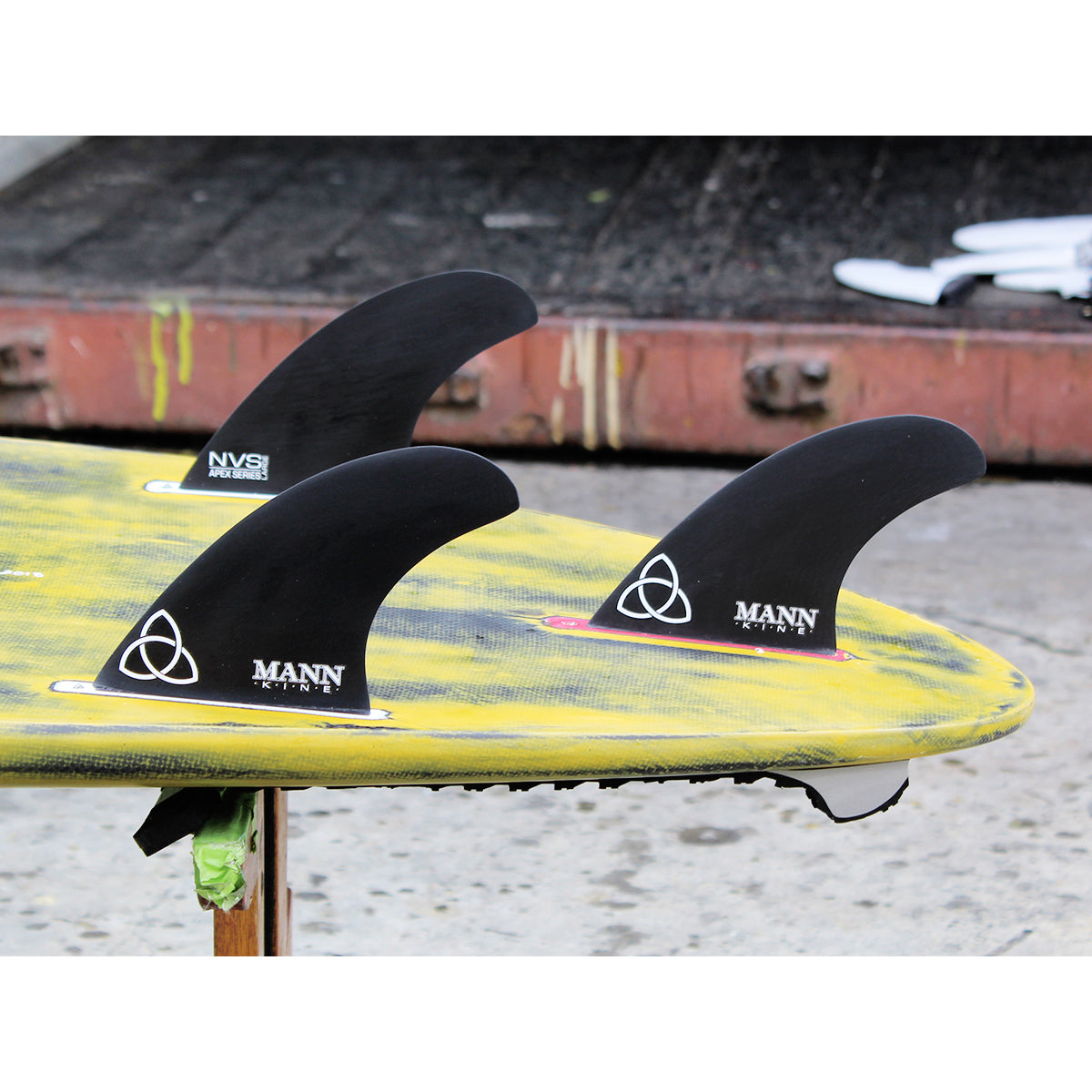

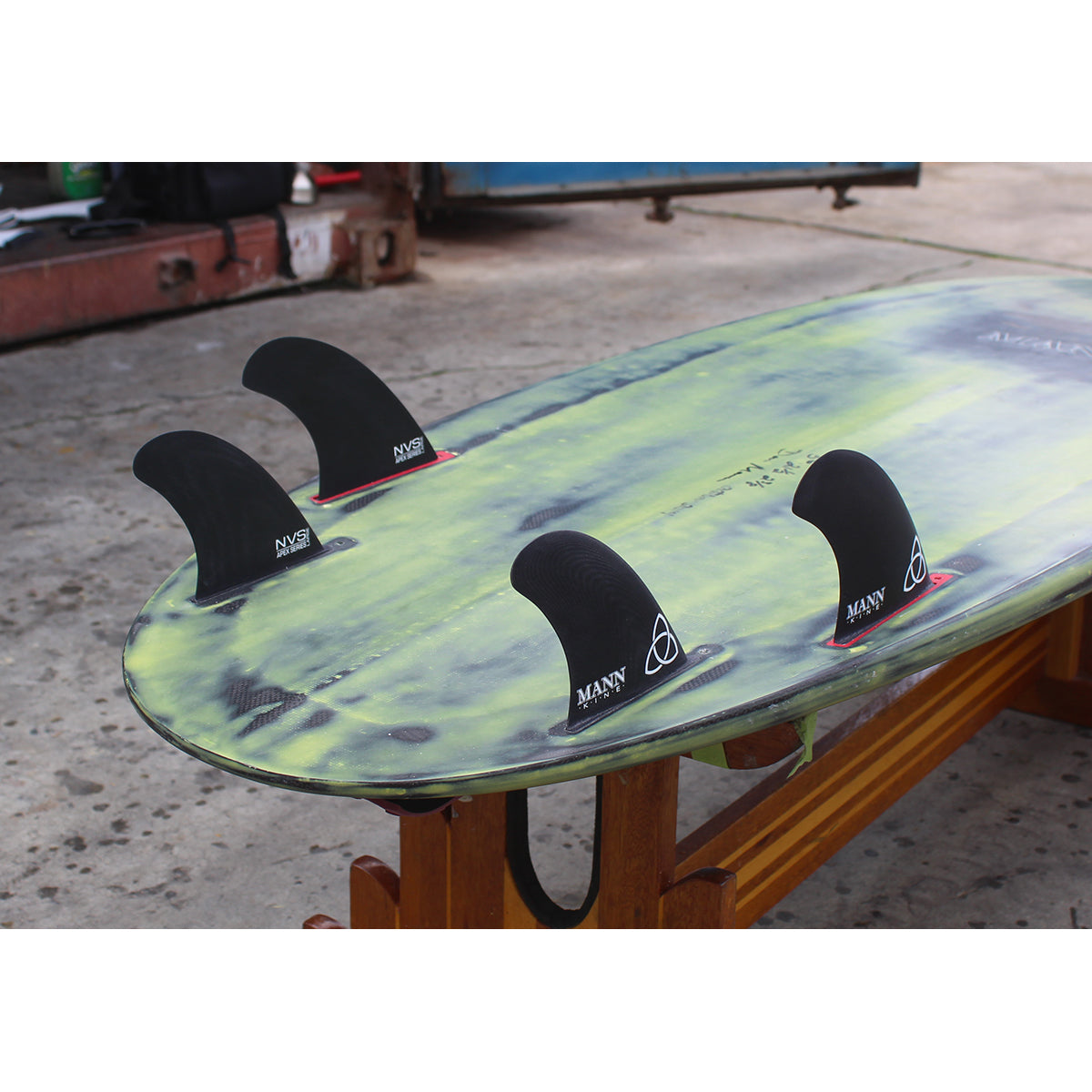

The larger side fins are paired with a slightly smaller center and an upright trailer for increased maneuverability when ridden as a thruster or quad.
Size: Medium
Front Base: 4.43 inch Height: 4.47 inch Rake: 34.3 Degrees Area: 15.00 inch Foil: Flat
Center Base: 4.32 inch Height: 4.35 inch Rake: 34.3 Degrees Area: 14.22 inch Foil 50/50
Trailer Base: 4.07 inch Height: 4.18 inch Rake: 31.2 Degrees Area: 12.34 inch Foil: 80/20
Size: Large
Front Base: 4.58 inch Height: 4.62 inch Rake: 34.3 Degrees Area: 16.02 inch Foil: Flat
Center Base: 4.46 inch Height: 4.50 inch Rake: 34.3 Degrees Area: 15.21 inch Foil: 50/50
Trailer Base: 4.21 inch Height: 4.32 inch Rake: 31.2 Degrees Area: 13.19 inch Foil: 80/20
G10 is made by compressing layers of fiberglass and epoxy resin and baking it an autoclave to have the maximum strength of any fiberglass available.Learn more about the NVS Apex Series fins here.
